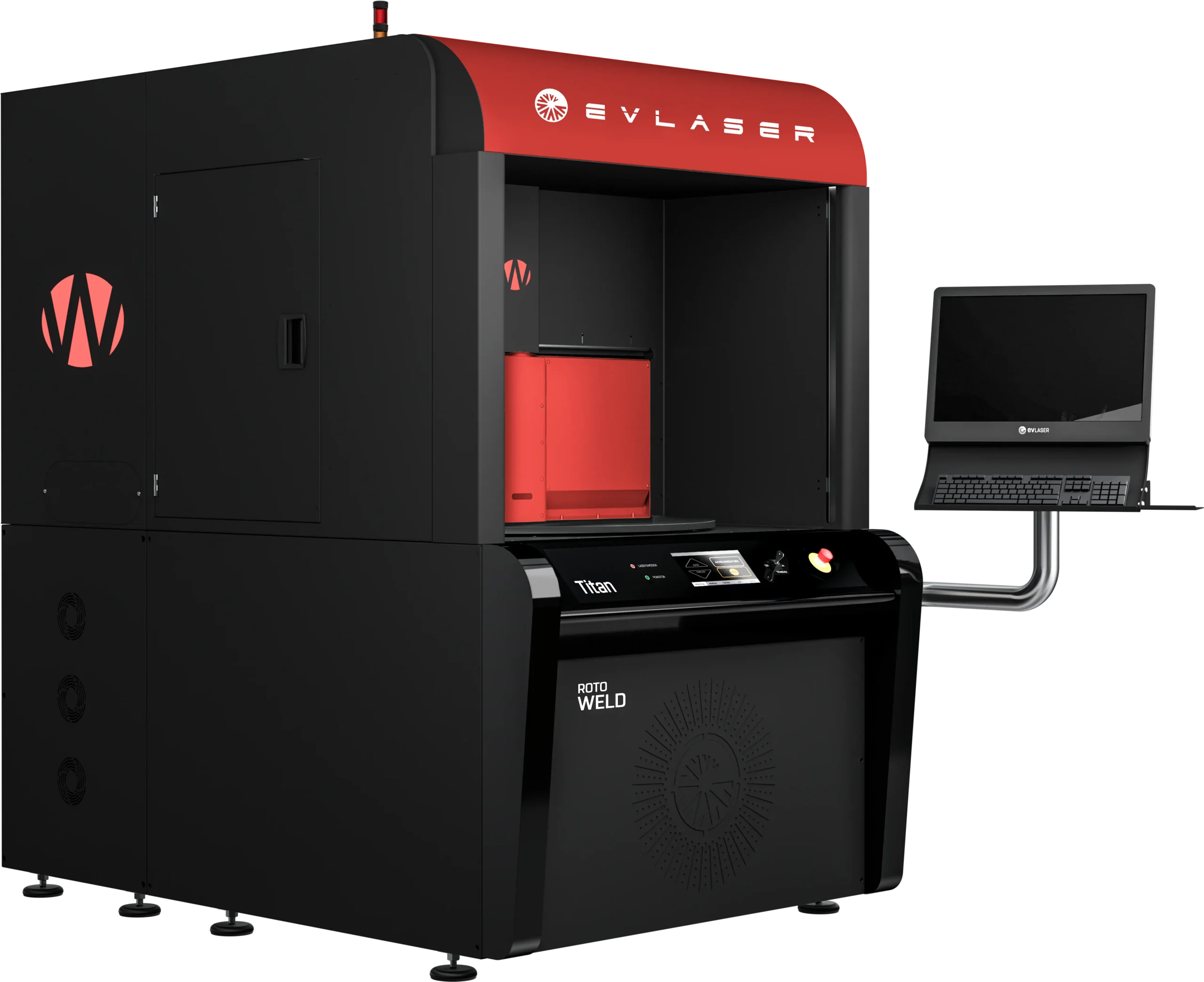

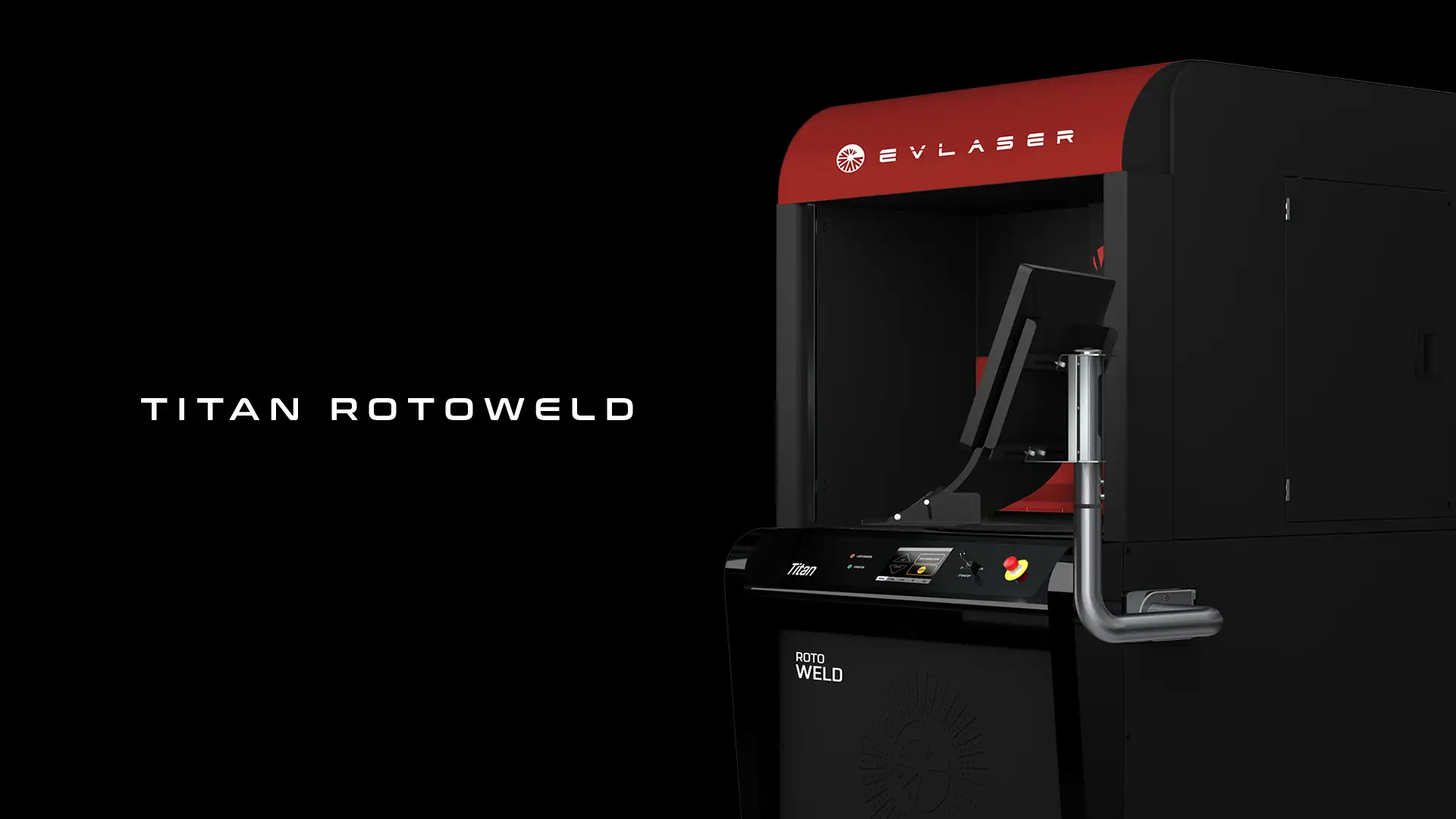

Titan Rotoweld
The TITAN WELD platform is also available in the ROTOWELD version with rotary table, for high productivity applications.
For technical characteristics ROTOWELD represents a wide system with rotating table up to 1000mm in diameter, versatile and configurable, designed to satisfy every type of welding requirement. ROTOWELD allows you to take advantage of the operator’s loading in masked time and therefore to process high production volumes.
The X and Y axes allow you to fully exploit the work area of the rotary table for processing batches in pallets or products with multiple markings.

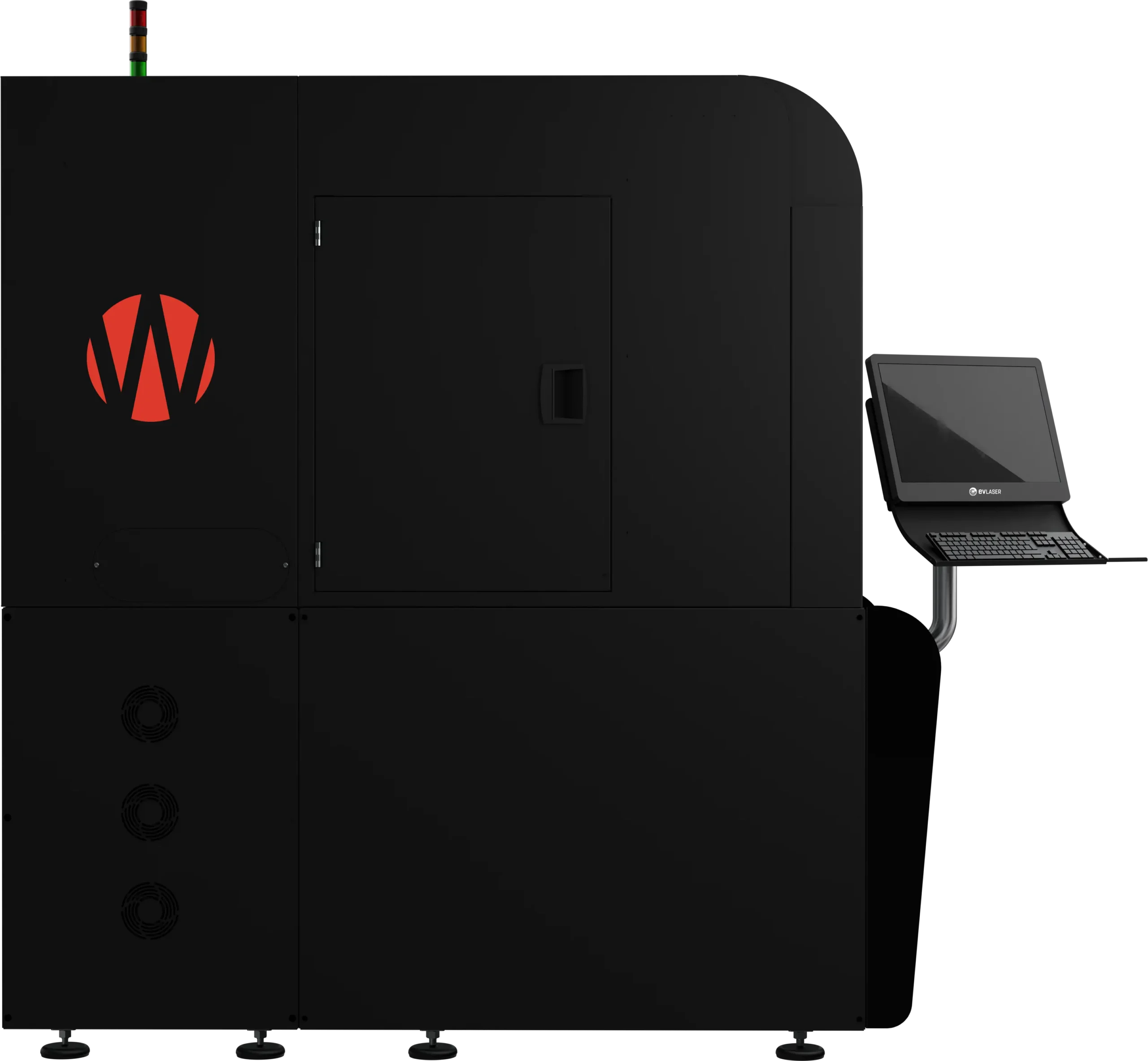

Robust and reliable, it can be configured with fixed and galvanometric laser heads.
Available in version with 2, 4, 6, 8 loading positions.
Get in touch
FLEXIBILITY
The modularity-oriented design makes the ROTOWELD system the best response to the needs for flexibility and productivity that the dynamism of the modern market imposes. The piece loading in masked time makes possible much higher production volumes compared to traditional systems.
WORK AREA AND MOTION
The configuration with a rotary table up to 1000mm in diameter and with up to three X / Y / Z positioning axes makes the system suitable for fully exploiting the work area of the table for processing batches in pallets or products with multiple markings.
Sources
Possibilità di integrare sorgenti a Fibra QCW, CW per la saldatura metallo e sorgenti a Diodo per la marcatura dei particolari plastici.
Tech specs.
| Laser | Fibra Yb | Fibra Yb | Nd:Yag | Direct Diode 980 |
| Technology | CW | QCW | QSwitch | CW |
| Wavelenght | 1064nm | 1064nm | 1064nm | 980nm |
| Power / Energy peak | up to 10 kW | up to 4.5 kW | up to 150 J | 30 @F160 |
| Average power | up to 10 kW | up to 450 W | 50 to 400 W | |
| Wobbling /Galvohead | optional | optional | NA | optional |
| Vision system | optional | optional | optional | optional |
| Working chamber dimension | 1000x500mm | 1000x500mm | 1000x500mm | 1000x500mm |
| Payload | <300Kg | <300Kg | <300Kg | <300Kg |
| Z Axis stroke | Up to 600mm | Up to 600mm | Up to 600mm | Up to 600mm |
| X Axis stroke | Up to 800mm | Up to 800mm | Up to 800mm | Up to 800mm |
| Y Axis stroke | Up to 300mm | Up to 300mm | Up to 300mm | Up to 300mm |
| Rotary table diameter | 1000mm | 1000mm | 1000mm | 1000mm |
| Safety class | 1 according to EN 60825-1: 2014 | 1 according to EN 60825-1: 2014 | 1 according to EN 60825-1: 2014 | 1 according to EN 60825-1: 2014 |
How can i help you?
THE BEST LASER SOLUTIONS FOR YOUR REQUIREMENTS
Fill out the form to discover how our laser cleaning system can optimize your production and improve work quality.
Matrix – Software Suite
Matrix is an advanced Software Suite developed thanks to thirty years of experience in Laser Marking, Engraving, Welding and Micromachining systems and ready for the challenges of Industry 4.0. It represents the state of the art of work functions and has the best man-machine interface on the market. This makes the training times of the operators practically nil and makes even more intense use pleasant. The practical EASYPAD touch on the front of the machine allows the operator to control the primary functions of MATRIX even without accessing the PC, allowing for a reduction in working times and making it easier to use.
ERP-MES
Integrated management of traceability thanks to the possible interfacing with management software, ERP, MES or database and to the reading and verification functions of texts or 1D / 2D codes through the integrated vision system
Add-on Packages
Modularity-oriented development allows the customer to configure MATRIX according to their needs. New needs will be easily addressed thanks to the packages and customizations that can be installed even after purchase using the convenient “LIVESERVICE” remote connection tool.
Smart Factory Ready
The Smart 4.0 package allows you to have remote control and monitoring of the system, with Reporting and Analytics on the productivity and quality of the work center and with the management of all the connections necessary for the factory interconnection.
Vision Systems
Advanced Vision Devices (AVD), are a fundamental part of our offer, as they integrate into complex systems designed for the various application sectors. The use of recognition algorithms, neural networks and artificial intelligence makes the field of use and potential extremely extensive. The native integration of vision features with MATRIX software programming allows unparalleled flexibility in the management of production processes.
Pattern Matching
“PATTERN MATCHING” function for automatic recognition of the position of the piece and consequent automatic alignment of the machining.”PATTERN MATCHING” function for automatic recognition of the position of the piece and consequent automatic alignment of the machining.
Quality Inspection
“QUALITY INSPECTION” function for the recognition of attributes on the piece (color, shape, size, presence or absence of artefacts, surface finish, etc.), with the assignment of a Pass / Fail or a Class of Membership.
OCR – Barcode 1D/2D
Functionality of reading and verification of texts (OCR) or 1D / 2D codes (barcode, datamatrix, QR code, etc.) integrated with the software to fulfill the traceability needs of the process or to guarantee the quality and the result in the case of a marking.
