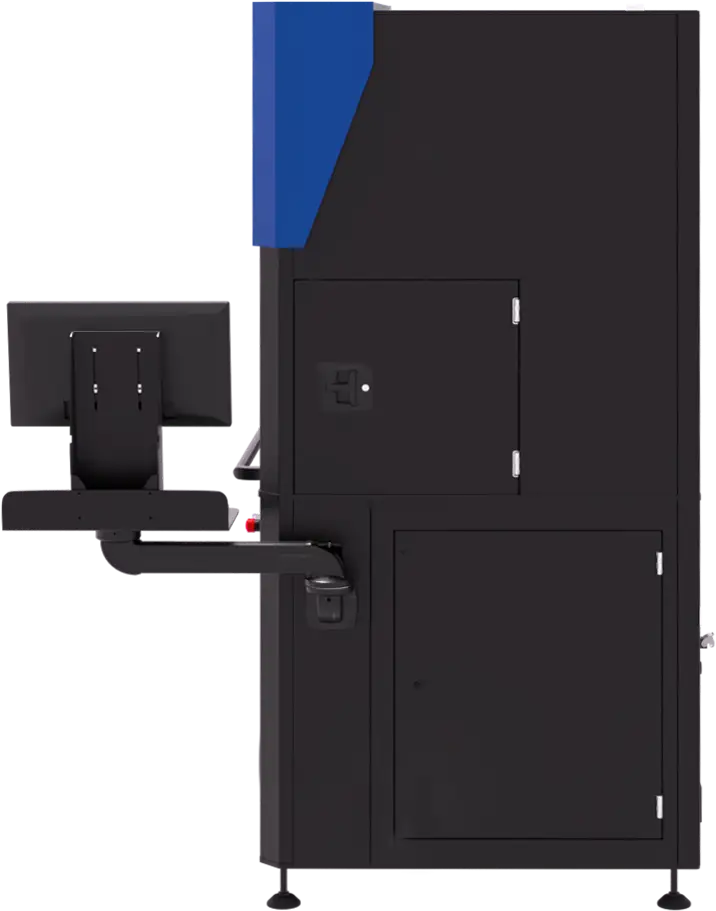

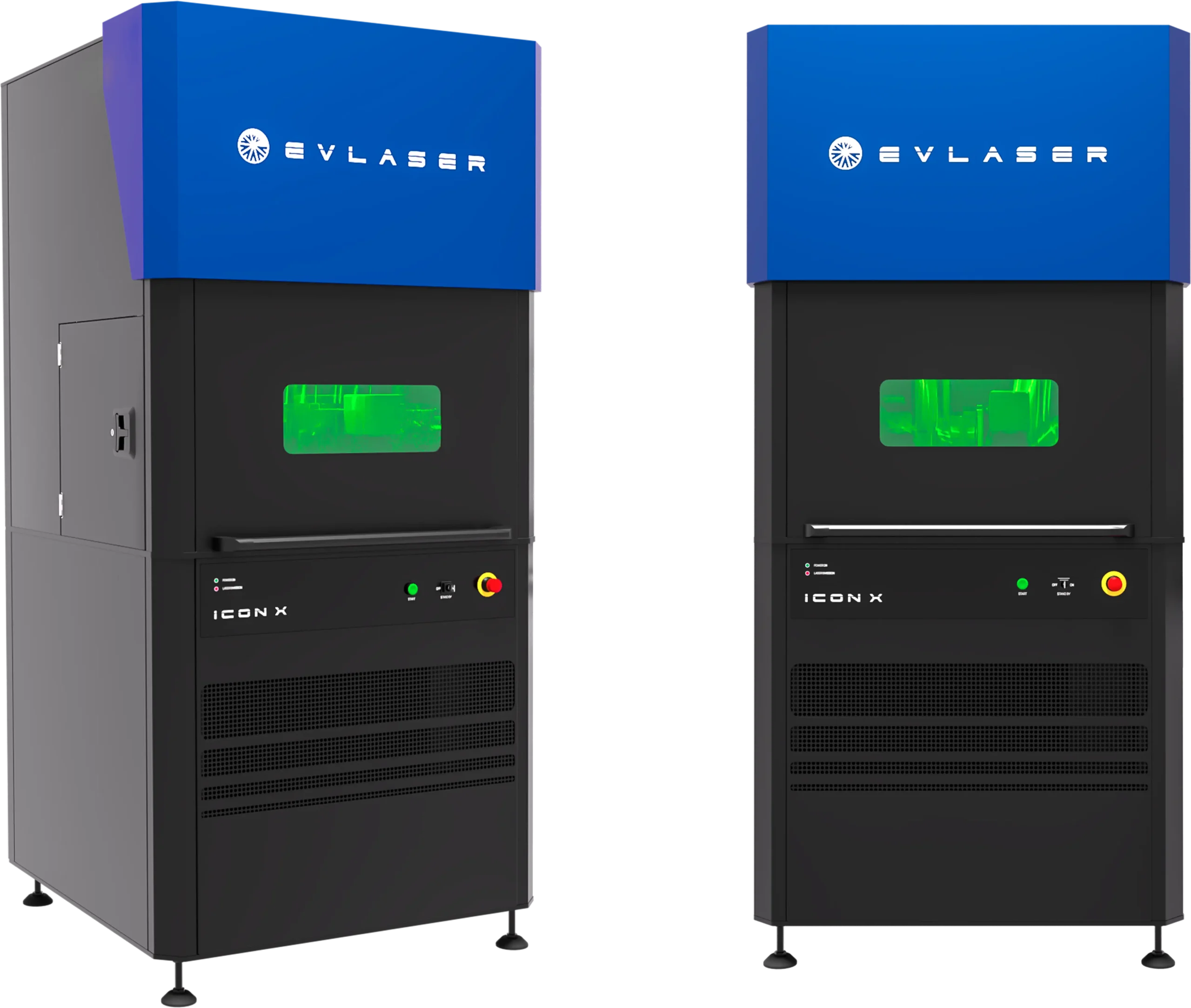

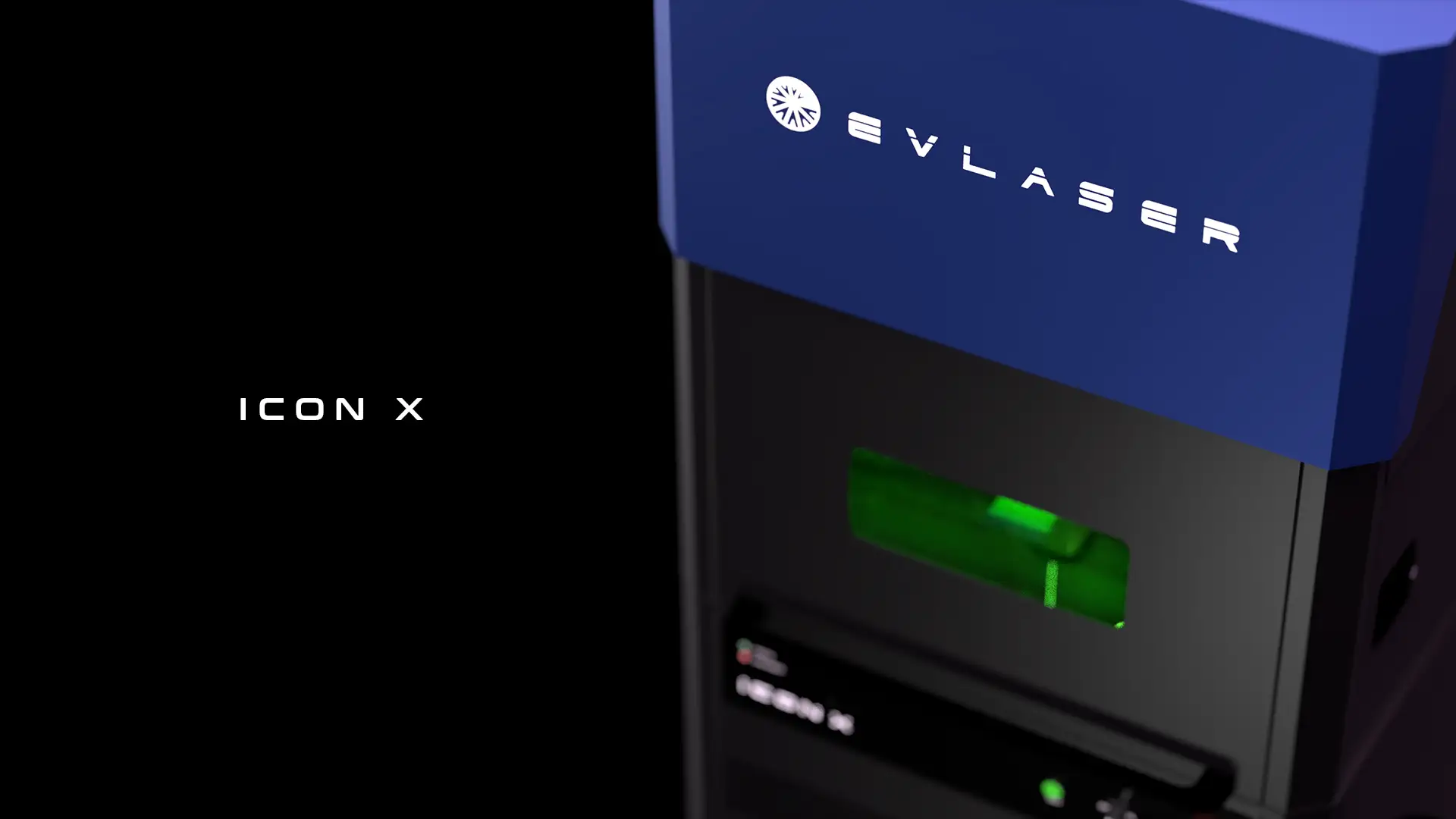

Icon X
The ICON X platform has been designed to combine small dimensions with a large and comfortable work area. The X axis easily allows the processing of multi-object pallets and makes it more productive than a fixed field model.
Icon X is the right balance between versatility and price for most applications.
The version for Laser Cleaning allows you to perform pre-and post-processing precision cleaning even on semi-finished products with pre-assembled components.
The system is equipped with a large working area (700 x 400mm) and an automatic door open on 3 sides with a large inspection window.
All customer materials can be processed with ICON X thanks to the integration of the ideal LASER source for each application.
Get in touch
PRODUCTIVITY
Compared to a fixed field system, ICON X allows you to move along the X axis to be able to process batches in pallets or paneling on large pieces.
WORKING AREA and MOTION
The configuration with 2 motorized linear axes with strokes (X / Z) of up to 400mm, a rotary axis R and a worktable of 700 x 400 makes ICON X ready for the most demanding challenges.
Matrix Suite + Easypad
The innovative machine management enabled by the brand new MATRIX software and the EASYPAD machine front operator panel makes the system easy and ergonomic. The customer’s marking needs are completely fulfilled by the interface, which is so simple and intuitive that it does not require training. EASYPAD, touch and multifunctional, allows the user to control the machine and the basic functions of the software without having to access the PC.
Tech specs.
| LASER | YB FIBER | MOPA | UV | CO2 |
| WAVELENGTH | 1064 nm | 1064 nm | 355 nm | 10600 nm |
| POWER | from 20 to 200 W | from 20 to 200 W | 3 W | 10 W |
| SCAN HEAD | 2D / 3D (OPT.) | 2D / 3D (OPT.) | 2D / 3D (OPT.) | 2D / 3D (OPT.) |
| VISION SYSTEM | OPTIONAL | OPTIONAL | OPTIONAL | OPTIONAL |
| WORKING AREA | 900 x 500 mm | 900 x 500 mm | 900 x 500 mm | 900 x 500 mm |
| Z AXIS STROKE | UP TO 500 mm | UP TO 500 mm | UP TO 500 mm | UP TO 500 mm |
| X AXIS STROKE | UP TO 600 mm | UP TO 600 mm | UP TO 600 mm | UP TO 600 mm |
| Y AXIS STROKE | UP TO 300 mm | UP TO 300 mm | UP TO 300 mm | UP TO 300 mm |
| ROTARY AXIS | OPTIONAL | OPTIONAL | OPTIONAL | OPTIONAL |
| DIMENSIONS (LXPXH) | 1000 x 1000 x 2050 mm | 1000 x 1000 x 2050 mm | 1000 x 1000 x 2050 mm | 1000 x 1000 x 2050 mm |
| SAFETY CLASS | CLASS 1 (EN 60825-1) | CLASS 1 (EN 60825-1) | CLASS 1 (EN 60825-1) | CLASS 1 (EN 60825-1) |
How can we help you?
THE BEST LASER SOLUTIONS FOR YOUR REQUIREMENTS
Fill out the form to discover how our laser cleaning system can optimize your production and improve work quality.
Matrix – Software Suite
Matrix is an advanced Software Suite developed thanks to thirty years of experience in Laser Marking, Engraving, Welding and Micromachining systems and ready for the challenges of Industry 4.0. It represents the state of the art of work functions and has the best man-machine interface on the market. This makes the training times of the operators practically nil and makes even more intense use pleasant. The practical EASYPAD touch on the front of the machine allows the operator to control the primary functions of MATRIX even without accessing the PC, allowing for a reduction in working times and making it easier to use.
ERP-MES
Integrated management of traceability thanks to the possible interfacing with management software, ERP, MES or database and to the reading and verification functions of texts or 1D / 2D codes through the integrated vision system
Add-on Packages
Modularity-oriented development allows the customer to configure MATRIX according to their needs. New needs will be easily addressed thanks to the packages and customizations that can be installed even after purchase using the convenient “LIVESERVICE” remote connection tool.
Smart Factory Ready
The Smart 4.0 package allows you to have remote control and monitoring of the system, with Reporting and Analytics on the productivity and quality of the work center and with the management of all the connections necessary for the factory interconnection.
Vision Systems
Advanced Vision Devices (AVD), are a fundamental part of our offer, as they integrate into complex systems designed for the various application sectors. The use of recognition algorithms, neural networks and artificial intelligence makes the field of use and potential extremely extensive. The native integration of vision features with MATRIX software programming allows unparalleled flexibility in the management of production processes.
Pattern Matching
“PATTERN MATCHING” function for automatic recognition of the position of the piece and consequent automatic alignment of the machining.”PATTERN MATCHING” function for automatic recognition of the position of the piece and consequent automatic alignment of the machining.
Quality Inspection
“QUALITY INSPECTION” function for the recognition of attributes on the piece (color, shape, size, presence or absence of artefacts, surface finish, etc.), with the assignment of a Pass / Fail or a Class of Membership.
OCR – Barcode 1D/2D
Functionality of reading and verification of texts (OCR) or 1D / 2D codes (barcode, datamatrix, QR code, etc.) integrated with the software to fulfill the traceability needs of the process or to guarantee the quality and the result in the case of a marking.
